Government Facility Perimeter Protection: 8 Necessary Elements

Abstract: Government facility perimeter protection is the operational capability to detect, verify, track, and support response to activity around a protected boundary. It often breaks down when sensors, alarms, video feeds, and response workflows are connected technically but not integrated operationally. Success is not simply detecting movement at the boundary. It is the ability to detect, verify, track and support response with continuity as conditions change.

This article breaks that capability into eight necessary elements:

• Risk-led perimeter design
• Layered detection that survives weather, darkness, and clutter
• Verification that happens fast enough to matter
• Continuous tracking and handover
• A unified operational picture
• False-alarm reduction by design
• Event-driven operations and resilience
• Workflow integration and auditable incident handling



A perimeter can look complete on a site plan and still fail at the first handover. For government, defence, and critical infrastructure sites, the issue is rarely an absence of equipment. It is usually fragmented coverage, slow verification, poor handover between zones, and too many alerts competing for the same operator’s attention.

That workload has consequences. In controlled human-factors research, higher false-alarm rates were associated with a 47% drop in security analyst decision precision and a 40% increase in response time.  For government facility perimeter protection, this is not just an efficiency issue. It affects whether operators can detect, verify, track, and support response while an incident is still developing.

For teams planning or upgrading government facility perimeter protection, these elements help separate a connected device layout from a perimeter capability that can perform in live conditions.

What is government facility perimeter protection?

Government facility perimeter protection is the operational capability to detect, verify, track, and support a response to activity around a protected boundary.

It can include physical barriers, perimeter intrusion detection systems, electro-optical and infrared cameras, radar, access-control events, patrol inputs, security operations centre workflows, and command-and-control integration.

The important point is how these elements work together. A capable perimeter system should provide operators with a coherent incident view: where the activity originated, which sensor detected it, whether it has been visually confirmed, where the target is moving, and which response action has been assigned.

This makes perimeter protection a system-level outcome. It is not defined by device count or sensor type, but by whether the site can sustain continuous situational awareness in real operating conditions.

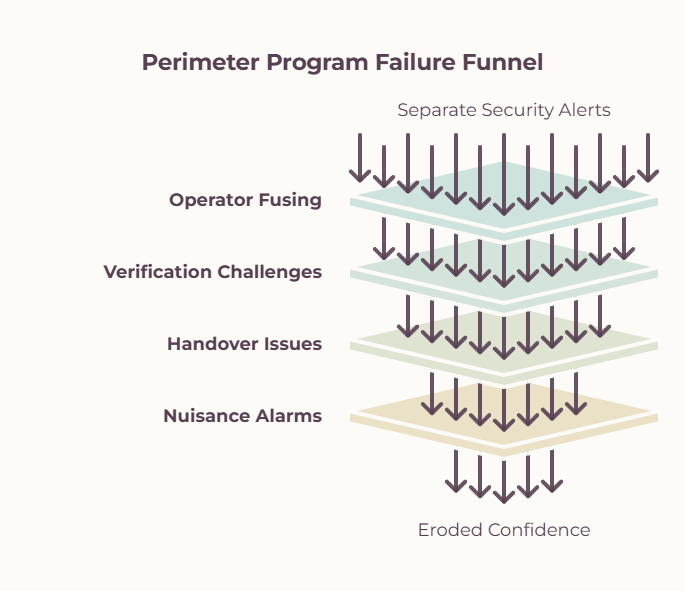

Why perimeter programmes fail in real-world conditions

Perimeter programmes often fail when strong individual components are connected technically but not integrated operationally. This same failure pattern appears in complex sites such as ports, where maritime port security depends on coordinated alarms, radar cues, video, access-control events, and response workflows forming one operational picture.

In this model, the operator becomes the fusion layer. They match an alarm to the right camera view, assess whether the activity is real, determine whether a new cue is related to the same target, and decide on the next response action. Each manual step adds delay and uncertainty.

The handover is usually the weakest point. A detection on the fence line may not translate well to the next camera view, sensor zone or response area. Operators may see movement without enough context to determine if it is related to the original alert. If nuisance alarms also compete for operator attention, confidence in the system starts to fall.

Effective perimeter protection should therefore be defined by outcomes: continuous coverage, rapid verification, track continuity, false-alarm reduction, and a clear workflow from detection to escalation.

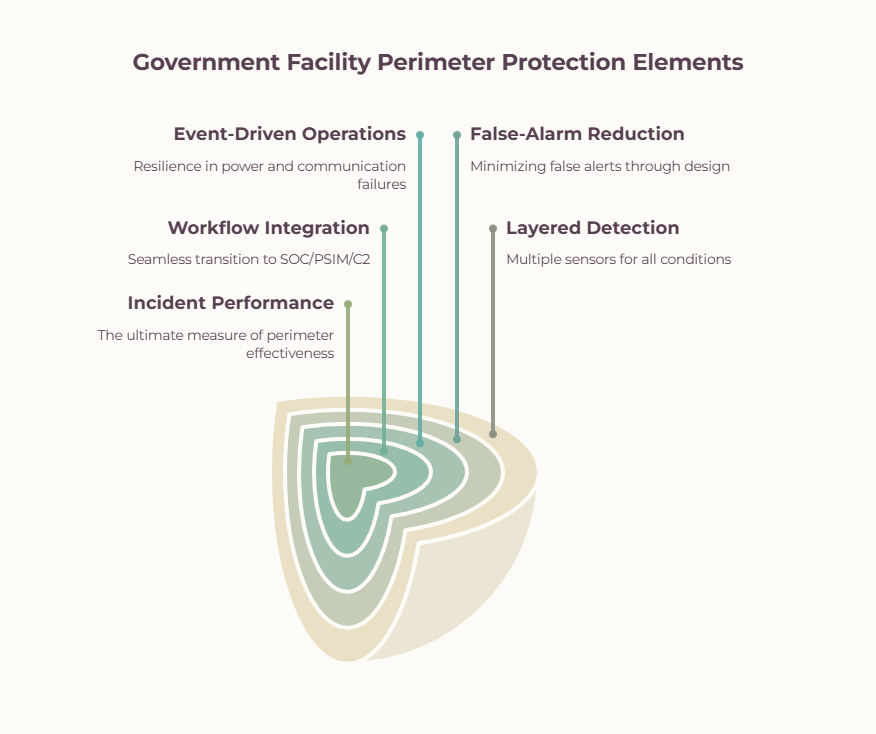

8 necessary elements for government facility perimeter protection

A perimeter security system should be judged by how clearly it supports an incident from first detection to response. The real test is whether operators can maintain context as conditions change, the target moves, and responsibility shifts from detection to verification, tracking, and response.

The following eight elements provide a practical framework for specifying and assessing that capability.

1. Risk-led perimeter design

Device layouts are often shaped by installation convenience rather than by the routes an intruder is most likely to use. A risk-led design starts with the site’s real exposure: approach routes, waiting points, access areas, dead ground, visibility gaps, and response constraints.

Specify:

• approach routes and likely intrusion paths
• detection, verification, and response zones
• Concept of Operations for day, night, and degraded visibility
• response routes and likely delay points

Each zone should have a clear operational intent. Some need early warning; some need fast verification; some need direct response support. In facilities where aerial threats are part of the risk profile, this same zone logic should also define how drone detection radar supports wider perimeter awareness rather than operating as a separate alert source.

2. Layered detection that survives weather, darkness, and clutter

No single sensor type performs with equal confidence in all conditions. Rain, glare, dust, poor lighting, moving vegetation, traffic, terrain, and blocked lines of sight can all affect detection quality. A single-layer perimeter will usually degrade when the environment changes.

Specify:

• Where each sensor type is expected to lose confidence
• Which overlapping sensor or zone covers that weakness
• What changes after dark, in poor weather, or during high-clutter periods
• Which detections still reach the security operations centre with usable context

Layered detection gives the site more than one way to identify activity. Wide-area sensors can provide early warning, while shorter-range assets can cover fence-line gaps, entrances, dead ground, and other weak points.

3. Verification that happens fast enough to matter

An alert is only useful if it gives the operator enough evidence to act. A point on a map is not enough. Neither is a camera view with no clear link to the original trigger. This is where integrated perimeter security systems matter: detection, visual verification, location, time, and sensor source need to appear as one usable incident view.

The system should shorten the path from detection to confirmation. When an alert is triggered, the system should present the relevant electro-optical or infrared view, map location, sensor source, timestamp, and short clips from before and after the trigger.

Specify:

• time-to-verify targets
• cue-to-camera behaviour
• evidence packaging for the operator
• what information must appear in the first incident view

The critical test is simple: can the operator confirm the event and select the next action before the target reaches the next handover point? Verification should be assessed against a defined time target, not left as a general expectation. The requirement should state how quickly the operator must receive the relevant view, context, and evidence after the first detection.

4. Continuous tracking and handover

Perimeter performance often weakens after the first detection. A target may move from a radar track to a thermal view, then into the edge of a camera field near a service road. If each tool treats that movement as a separate event, the security operations centre loses continuity.

Specify:

• handover points between sensors, zones, and response areas
• criteria for maintaining the same track ID
• What happens when confidence drops
• How operators re-acquire a lost track

Track continuity should also be tested across zone boundaries, sensor coverage limits, and degraded-confidence scenarios. These are the points where a connected system often looks functional but fails operationally. If the system loses confidence, it should show the last confirmed location, confirming sensor, time of confirmation and likely next zone. That gives operators a starting point for re-acquisition instead of forcing them to reconstruct the incident from separate cues.

5. A unified operational picture

A unified operational picture is created through multi-source correlation, not by adding more screens. Operators should not have to compare separate interfaces to decide whether an alarm, camera view, radar cue, and access-control event are connected.

Specify that the incident view shows:

• sensor source and event time
• track ID and map position
• verification state
• confidence level
• next expected zone or sensor
• assigned response action
• open, escalated, dismissed, or closed status

If confidence decreases, the track moves to another zone, or a response action is completed, the update should remain in the same event record. This supports continuity and reduces the burden on operators during high-pressure incidents.

6. False-alarm reduction by design

False alarms are an operational capacity limit, not a minor inconvenience. After repeated alerts from wind, wildlife, contractor traffic, loose material, or poorly tuned fence-line triggers, operators can begin to treat alarms as background noise. For government facilities, this weakens incident handling, reporting discipline, and the governance risk protocols that depend on reliable event records.

False-alarm reduction should be designed into the system, not left to operator judgment alone.

Specify:

• multi-sensor corroboration before high-priority escalation
• confidence thresholds by zone and risk level
• nuisance-alarm categories, such as vegetation, weather, wildlife, or authorised activity
• tuning ownership after go-live
• reporting KPIs for alarm source, cause, frequency, and outcome

False-alarm reporting should separate nuisance sources from unknown activity. This allows teams to tune known causes without weakening coverage on credible intrusion routes. The goal is not to suppress sensitivity across the site.

7. Event-driven operations and resilience

Power and communications are part of operational perimeter performance. Always-on architectures can strain bandwidth, power availability, and maintenance capacity, especially across larger or more remote sites.

Event-driven operations help preserve efficiency while maintaining vigilance. Lower-power sensing can remain active in the background, then cue higher-power sensors or closer assessment when activity is detected.

Specify:

• What remains active in low-power watch mode
• What triggers escalation to higher-power sensors
• What continues locally during communications loss
• How detection, logging, and recording are handled in degraded mode
• how operators are alerted to sensor, power, battery, or link faults

Resilience should be tested as part of acceptance, including communications loss, low-power operation, local recording, recovery behaviour, and operator notification. The system should not fail quietly. Operators need clear health monitoring as well as detection alerts.

8. Workflow integration and auditable incident handling

A perimeter alert must move cleanly into the security operations centre (SOC), physical security information management (PSIM) platform, or command-and-control (C2) environment. The operator should not have to copy details from one system to another or rely on manual updates to complete the incident record. Where managed security service providers are involved in monitoring or escalation, the same principle applies: event data must remain accurate, traceable, and ready for action.

Specify that the integration passes:

• event ID and timestamp
• sensor source and zone
• map location and track status
• verification state and confidence level
• evidence clip or image
• priority level and escalation status
• assigned response team or patrol
• operator action and closure code

This gives the security operations centre one incident record from first detection to closure. It also supports dispatch, escalation, supervisor review, and audit by showing what was detected, what was verified, who acted, when they acted, and why the event was escalated, dismissed, or closed.

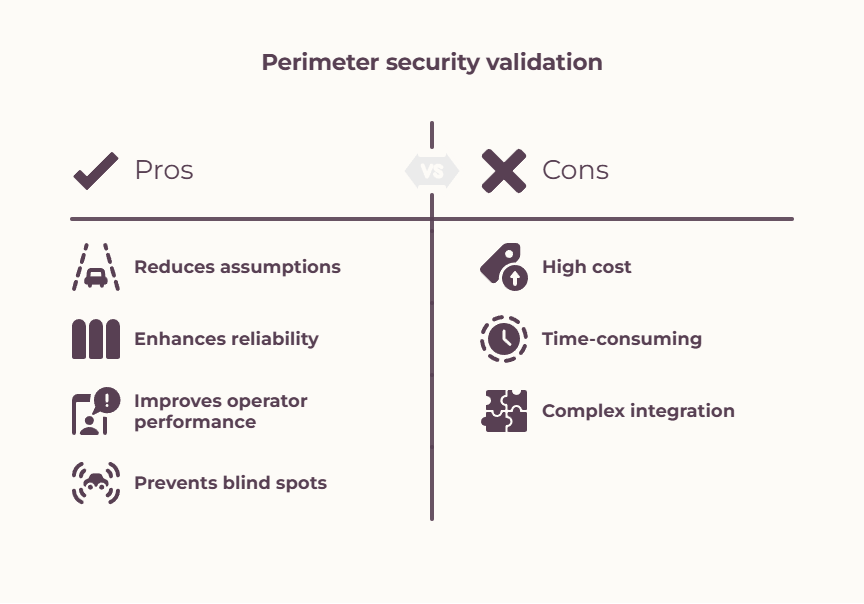

How to validate government facility perimeter protection before go-live

Acceptance testing should demonstrate that the system delivers operational outcomes, not merely that devices are powered on. The test plan should follow likely intrusion routes across gates, service roads, public-facing edges, dead ground, and zone boundaries.

Use the checklist below before go-live:

• Day and night runs: Prove that operators can detect, verify, and track activity under changing light conditions.
• Weather and clutter: Prove that the system still produces usable alerts when rain, glare, wind movement, traffic, or vegetation affects confidence.
• Boundary handovers: Prove that tracks carry between sensors, camera fields, zones, and response areas.
• Communications loss: Prove that detection, logging, local recording, and recovery behaviour are clear during degraded connectivity.
• Power modes: Prove that low-power watch, sensor escalation, and fault alerts behave as specified.
• False-alarm reporting: Prove that alarm source, cause, zone, frequency, and operator action can be measured and reviewed.
• Incident record quality: Prove that the record shows what was detected, what was verified, where the track moved, who was notified, and what action followed.

A useful acceptance test reduces assumptions before deployment. It shows whether the perimeter capability will hold together as the site becomes active, conditions change, and operators need to make decisions quickly.

Common perimeter security mistakes that create blind spots

Blind spots often come from decisions that look reasonable on paper. A site can invest in high-performing sensors and still lose continuity if those sensors are not integrated into a working incident flow.

Common mistakes include:

• buying high-performing sensors without defining how the full system should behave
• ignoring handover between sensors, zones, camera fields, and response areas
• leaving integration until later in the programme
• Treating fusion as more screens instead of one correlated operational picture
• underestimating the operator workload involved in checking, matching, and escalating alerts
• Failing to assign ownership for tuning, false-alarm review, and performance reporting

These issues are preventable. The perimeter plan should define how detection, verification, tracking, and response will work together before equipment is installed.

Make the perimeter prove itself

The strength of a perimeter is not defined by the number of sensors on the boundary. It is defined by whether the system can detect, verify, track, and support response with continuity while an incident is still in motion.

That requires layered detection, fast verification, track handover, false-alarm control, resilient operations, and a workflow the security operations centre can act on. Each part has to support the next. Otherwise, the burden returns to the operator.
