What are Remote Weapons Stations (RWS) [with Examples]?

Abstract

• Remote Weapon Stations integrate sensing, stabilisation, fire-control, and operator control into a remotely operated platform subsystem that allows crews to remain protected.
• Effective RWS performance depends on vehicle-level integration, including mechanical fit, power, data, crew interfaces, command systems, and observation continuity during movement.
• BeeSense now offers its own RWS solution as part of its vehicle systems portfolio, alongside its situational-awareness capabilities.
• RWS observation and vehicle-wide situational awareness serve different crew requirements. BeeSense FIREFLY SA complements the RWS with 360-degree day and night awareness and Driving Vision Enhancement around the vehicle.

A Remote Weapon Station, or RWS, does more than move weapon operation inside a protected platform. It places sensing, controls, fire-control functions, and other information into an already demanding crew environment, where system design can directly affect how quickly operators understand and respond to changing conditions.

In one virtual armoured-vehicle study involving 50 participants, increasing appropriate levels of task automation reduced abnormal-state response times by at least 11.2% and reduced several measures of operator workload.

Modern RWS therefore need to be considered as integrated vehicle subsystems, not simply remotely operated mounts. This article explains how remote weapon stations work, how they integrate with the host platform, what to evaluate when specifying an RWS, and why the station’s sighting system should be distinguished from wider 360-degree vehicle situational awareness.

What Is a Remote Weapon Station?

A remote weapon station is a remotely operated, platform-mounted system that combines a weapon with observation, control, and fire-control functions. Unlike a basic manual mount, it allows the operator to remain inside the protected vehicle or another protected operator position rather than operating the system from an exposed location.

The terms remote weapon station, remote-controlled weapon station, and remotely controlled weapon station are all used within the defence sector, with RWS and RCWS being common abbreviations. Individual architectures vary according to platform and mission, but several functions are commonly integrated within an RWS.

Component	Role within the system
Stabilised mount	Stabilises the line of sight and, where applicable, line of fire to support observation, aiming, and engagement during platform movement.
Day camera	Provides electro-optical imagery
Thermal imager	Supports observation at night and in reduced visibility
Laser rangefinder	Provides range information where fitted
Tracking functions	Support continued observation of a selected object where available
Fire-control system	Processes relevant sensor, platform, and operator inputs
Operator interface	Provides displays and controls for remote operation
Power and data interfaces	Connect the station with the host platform
Vehicle system interfaces	Support integration with BMS, command, or other onboard systems where configured

These functions make an RWS more than a remotely actuated mount. Observation, line-of-sight and, where applicable, line-of-fire stabilisation, processing, operator control, and vehicle integration all contribute to the performance of the complete system.

An RWS is also distinct from a conventional manned turret, where one or more crew members may physically occupy the turret. Although RWS are commonly associated with armoured and tactical vehicles, the underlying concept can also be applied to naval and stationary platforms, including environments where critical infrastructure security depends on integrated sensing, verification, and command-level situational awareness.

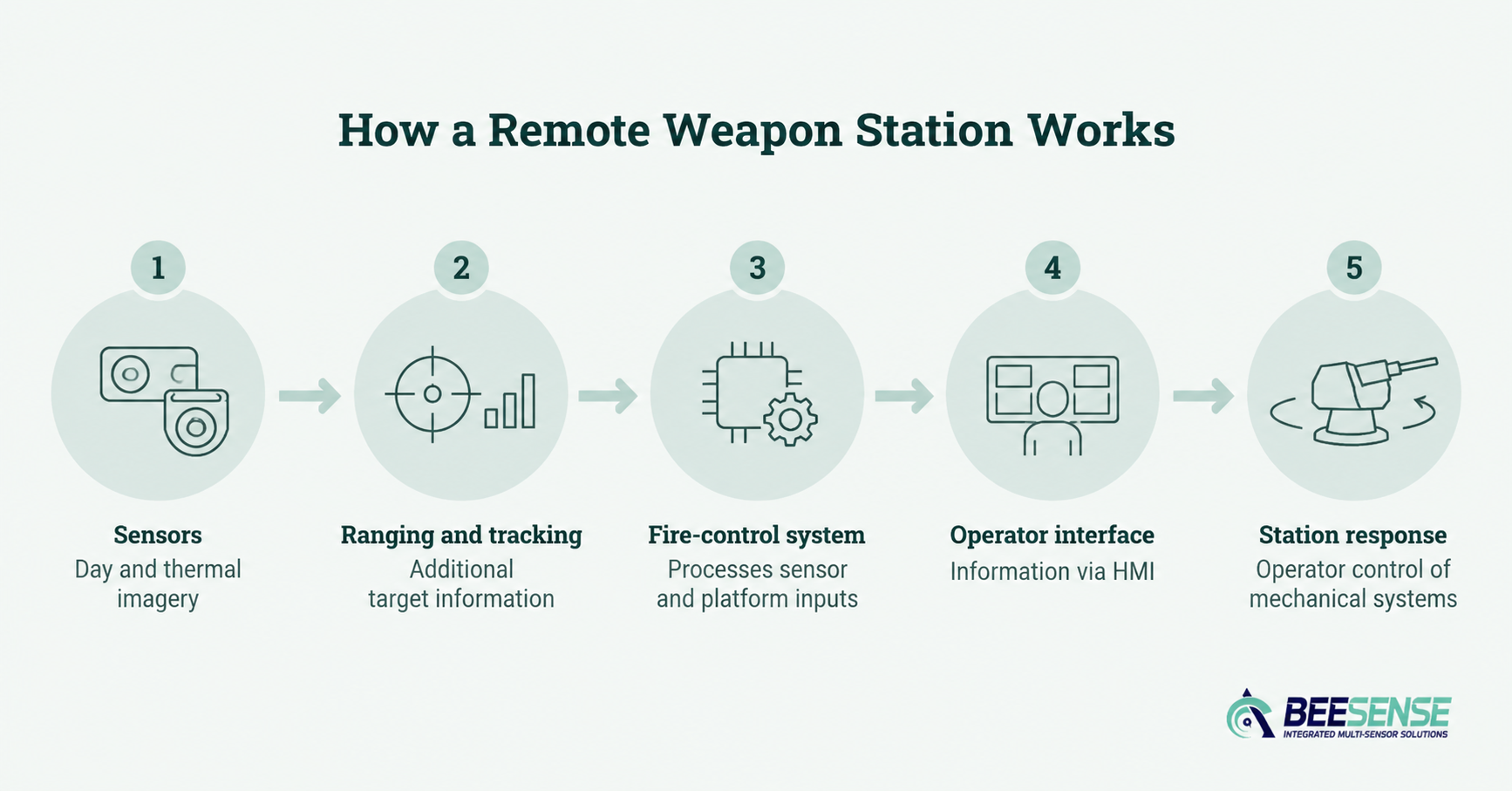

How Does a Remote Weapon Station Work?

An RWS creates an information and control path between the external environment, the station’s sensors, the operator, and the platform. A typical process includes:

1. Day or thermal sensors provide imagery of the area being observed.
2. Ranging or tracking functions provide additional information where supported.
3. Fire-control functions process relevant sensor and platform inputs.
4. The operator receives information through the Human-Machine Interface, or HMI.
5. The operator controls the station, which responds through its mechanical and electronic systems.

Each stage affects the effectiveness of the others. High-quality imagery provides limited operational value if platform movement prevents the operator from maintaining observation. Similarly, additional sensor feeds can increase workload rather than improve awareness if information is not presented clearly.

Day and thermal cameras therefore serve complementary purposes. Day cameras provide detailed electro-optical imagery under suitable illumination, while thermal imagers detect infrared radiation and support observation at night and under some reduced-visibility conditions. Depending on the RWS configuration, a laser rangefinder can provide distance information, while tracking functions can help maintain observation of a selected object.

Why stabilisation matters in Remote Weapon Stations

A mobile platform introduces vibration, uneven terrain, acceleration, braking, and changes in direction into the observation process. Stabilisation compensates for vehicle movement to help maintain a usable line of sight.

For programme teams, the relevant question is not simply whether an RWS is described as stabilised. It is whether the operator can maintain useful observation under the terrain, vibration, vehicle dynamics, and environmental conditions expected during operation.

This is one reason an RWS needs to be evaluated as part of the host platform rather than as an isolated piece of equipment.

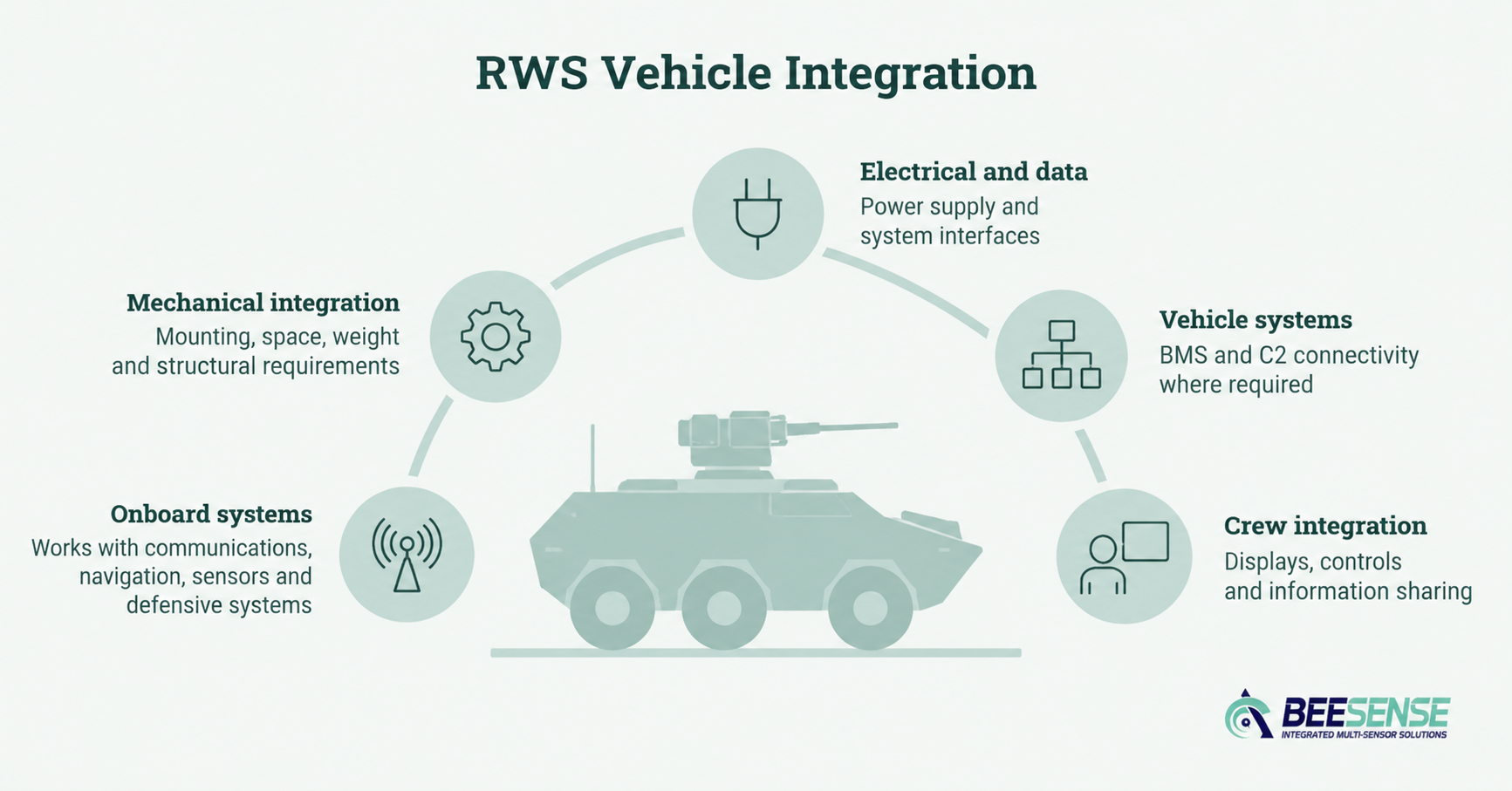

How Does an RWS Integrate With the Vehicle?

Installing an RWS affects several parts of the vehicle architecture. The station has to operate alongside communications equipment, navigation systems, sensors, defensive systems, crew displays, and other onboard electronics.

Mechanical integration includes mounting position, structural requirements, available space, system weight, and centre of gravity. These factors can become particularly important on lighter vehicles or platforms where roof space and payload capacity are already constrained.

Electrical and digital integration create additional requirements. The RWS needs appropriate power and data connections and, depending on the system, may interface with a Battle Management System, or BMS, and other vehicle or command-and-control systems.

Crew integration is equally important. Programme teams need to determine where displays and controls will be positioned, who will operate the station, what other systems that person must monitor, and which information needs to be available to other crew members. A technically capable remote weapon station can still be a poor platform fit if these dependencies are not addressed early in the integration process.

RWS Sensors vs 360-Degree Vehicle Situational Awareness

One of the most important distinctions in remote weapon station integration is the difference between station observation and whole-vehicle situational awareness.

A remote weapon station can contain capable electro-optical and thermal sensors. However, those sensors are primarily associated with the station’s line of sight and the task being performed by its operator.

Other crew members may need different information at the same time.

Consider an armoured vehicle manoeuvring through a constrained environment. The RWS operator may be observing an area to one side of the platform. The driver still needs visibility ahead and immediately around the vehicle, while the commander may need to monitor activity behind the platform or in another direction.

A single remote weapon station line of sight cannot necessarily satisfy these requirements simultaneously.

This can create separate requirements for:

• Driving Vision Enhancement
• Close-range observation
• Blind-spot reduction
• Persistent all-around monitoring
• Day and night visibility
• Simultaneous awareness for different crew roles

The distinction is therefore not simply about having more sensors. It is about what those sensors are positioned and configured to observe. The same principle applies when selecting perimeter security devices because the value comes from matching each sensing technology to the specific coverage and verification requirement.

Remote Weapon Station observation	Vehicle situational awareness
Supports operation of the station	Supports awareness around the vehicle
Follows the RWS line of sight	Can maintain coverage in multiple directions
Concentrates on selected areas of interest	Supports persistent surrounding observation
Primarily serves the RWS operator	Can support the driver, commander, and other crew
Integrates with fire-control functions	Integrates with the wider vehicle sensor and command environment

An remote weapon station may provide detailed imagery within its field of view while other areas remain unobserved. Programme teams therefore need to assess both the quality of the RWS observation channel and the coverage available to the rest of the crew.

Examples of Remote Weapon Station Configurations and Applications

There is no single standard remote weapon station architecture. Configurations differ according to platform size, operating environment, sensor requirements, available power, physical constraints, and the wider vehicle architecture. Rather than treating individual commercial products as directly comparable, it is more useful to consider the main types of deployment.

RWS configuration	Typical application	Important integration considerations
Lightweight vehicle RWS	Tactical and light armoured vehicles	Weight, roof space, power, structural load, and vehicle stability
Armoured vehicle RWS	APCs and other protected platforms	Sensor integration, crew interfaces, BMS connectivity, and wider situational awareness
Naval RWS	Patrol and other military vessels	Stabilisation, environmental exposure, platform movement, and ship-system integration
Stationary RWS	Fixed defensive positions	Observation coverage, power, communications, and integration with other site systems

Commercial remote weapon station families from established defence manufacturers demonstrate these different approaches, with configurations varying substantially in sensing, stabilisation, platform interfaces, and physical design.

For procurement teams, the useful comparison is therefore not which system has the longest feature list. It is whether the selected configuration fits the host platform, crew structure, sensor requirements, operating environment, and wider system architecture.

BeeSense now offers a Remote Weapon Station solution alongside its vehicle situational-awareness portfolio. This allows programme teams to consider the RWS and the wider vehicle sensing architecture as complementary parts of the same platform environment.

The distinction between them remains important. The RWS provides the dedicated observation, operator-control, and fire-control functions associated with the weapon station, while systems such as FIREFLY SA address broader visibility requirements around the vehicle. Specific BeeSense RWS capabilities and integration options should be evaluated against the requirements of the individual platform and programme.

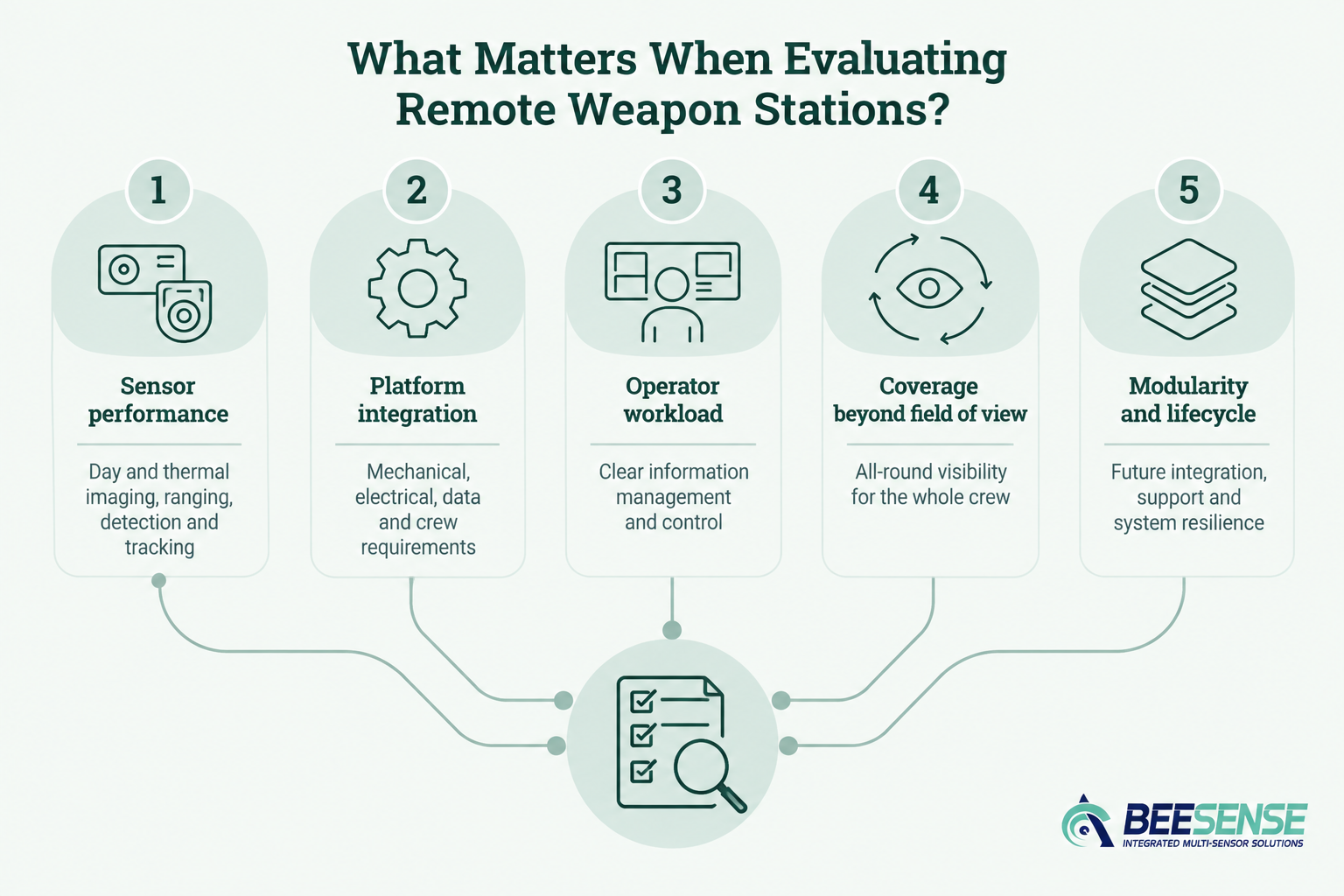

What Matters When Evaluating Remote Weapon Stations?

Weapon compatibility and headline sensor specifications provide only part of the information needed to evaluate a Remote Weapon Station. The system also needs to perform effectively as part of the complete platform.

1. Sensor performance and observation continuity

Sensor evaluation should establish what the operator can observe across the expected operating environment. Relevant factors can include day and thermal image quality, field of view, night performance, ranging capability where required, detection and tracking support where available, and observation while the vehicle is moving.

Operational conditions matter. Terrain, weather, vibration, vehicle movement, and visibility can all affect the usefulness of the sensor picture, so performance should be considered against the intended deployment rather than only under favourable conditions.

2. Platform integration

The RWS creates mechanical, electrical, digital, and crew-level requirements that need to be considered together.

Integration area	Questions to consider
Mechanical	What are the mounting, space, weight, structural, and centre-of-gravity implications?
Electrical	Can the platform support the required power demand?
Data	What interfaces and vehicle network connections are required?
Crew	Where are displays and controls located, and who needs access to the information?
Command	Is BMS or command-and-control integration required?
Sensor architecture	How does the RWS interact with other vehicle observation systems?
Verification	How will integration and acceptance be tested on the complete platform?

Considering these requirements early reduces the risk of optimising one subsystem at the expense of the wider vehicle.

3. Operator workload and information management

More information does not automatically produce better situational awareness. The Human-Machine Interface determines how the RWS operator receives information and controls the station, while the wider vehicle architecture determines how information is shared with the rest of the crew. The same broader principle applies to system observability, because operators need enough visibility into system behaviour and information flow to understand what requires attention.

Display layout, control ergonomics, alerts, and interaction with other onboard systems can all affect workload. If several systems provide separate sensor feeds through disconnected interfaces, the crew may receive more data without gaining a clearer operational picture.

The objective should be to make relevant information available to the crew member who needs it without adding unnecessary monitoring tasks.

4. Coverage beyond the RWS field of view

Programme teams should also evaluate what happens when the RWS is directed away from an area the rest of the crew needs to observe.

Can the driver maintain visibility during manoeuvring? Are close-range blind spots covered? Can the commander observe other sectors without interrupting the RWS operator’s task? Is the required coverage available during both day and night operations?

These questions identify the gap between RWS observation and vehicle-level situational awareness.

5. Modularity and lifecycle requirements

Vehicle platforms can remain operational for many years. During that time, sensors, software, displays, interfaces, and command systems may change.

A modular architecture can make future integration easier, but lifecycle planning should also consider maintenance, training, environmental durability, system availability, support, and obsolescence management. Where connected software and digital interfaces form part of the platform architecture, a structured vulnerability assessment can also help identify weaknesses that need to be addressed as systems evolve. The initial RWS configuration is only one part of the programme decision.

Extending Situational Awareness Around RWS

An RWS and a vehicle situational-awareness system address different but complementary requirements. The RWS provides a dedicated observation and control channel for its operator, while vehicle-wide situational awareness maintains useful visibility around the platform regardless of where the station is currently directed.

BeeSense addresses both parts of this architecture through its RWS solution and FIREFLY SA. FIREFLY SA serves as the complementary situational-awareness layer, combining thermal and HD low-light imaging to support Driving Vision Enhancement and 360-degree day and night awareness. Video analytics and real-time alerts can also provide relevant information to the driver and vehicle command-and-control environment.

When the RWS operator is concentrating on one sector, FIREFLY SA can continue providing awareness around other areas of the vehicle. This allows the driver and wider crew to maintain visibility without relying on the RWS line of sight for every observation requirement.

The roles remain distinct. The RWS handles the functions associated with the weapon station, while FIREFLY SA provides the wider 360-degree day and night situational-awareness layer around the platform.

Example: FIREFLY SA for armoured vehicle awareness

FIREFLY SA illustrates how a dedicated situational-awareness layer can operate alongside an RWS to support the wider visibility requirements of the driver, commander, and crew.

FIREFLY SA capability	Vehicle-level purpose
Thermal imaging	Supports day and night awareness in varying visibility conditions
HD low-light imaging	Provides additional visual information in low-light environments
360-degree coverage	Extends observation beyond a single RWS line of sight
Driving Vision Enhancement	Supports driver visibility during vehicle movement
Video analytics	Helps identify relevant activity within the sensor coverage
Real-time alerts	Provides information to the driver and vehicle command-and-control environment

The value comes from combining these capabilities into an integrated sensor architecture rather than treating each camera as an independent feed. Sensor positioning, field of view, complementary imaging technologies, processing, and vehicle integration all determine whether the crew gains useful coverage.

For armoured vehicles, APCs, unmanned vehicles, and other security platforms, this approach can help reduce blind spots while maintaining awareness around the vehicle when the RWS is focused elsewhere.

Build the RWS and Sensor Architecture Around the Whole Vehicle

Remote weapon stations combine observation, stabilisation, fire-control functions, operator controls, and platform interfaces within a single subsystem. Their effectiveness depends on both the RWS itself and how well it integrates with the host platform. Vehicle-wide situational awareness adds another part of that architecture by giving the wider crew visibility around the platform when the RWS is focused elsewhere.

For vehicle OEMs, systems integrators, programme managers, and defence teams, the requirement is therefore not simply to select an RWS in isolation. The complete architecture needs to account for the RWS operator, driver, commander, and other crew members, as well as the different observation requirements each role creates.

BeeSense now supports both sides of this requirement, with its own RWS solution and FIREFLY SA for complementary 360-degree day and night situational awareness and Driving Vision Enhancement. The two systems address different functions within the vehicle architecture and can be considered together when planning a new platform or upgrading an existing one. Talk to a BeeSense expert about RWS and vehicle situational-awareness requirements for your programme.
