Critical infrastructure protection: The expert guide

Abstract

• Critical infrastructure protection is the combination of security measures used to safeguard essential facilities, systems, and assets from threats that could disrupt their operation.
• Effective protection depends on maintaining continuity across detection, verification, classification, tracking, escalation, and response, rather than relying on individual security technologies in isolation.
• Protection architectures should be designed around credible threats, terrain, approach routes, vulnerabilities, and high-consequence assets, not nominal sensor specifications alone.
• Layered multi-sensor systems combine complementary sensing technologies to reduce surveillance gaps, improve verification, maintain track continuity, and provide operators with a more complete operational picture.
• Sensor fusion and effective system integration help reduce manual correlation and nuisance alarms while ensuring relevant information remains available as an event moves between sensors and surveillance zones.
• Critical infrastructure protection should be evaluated and tested as a complete operational system, including sensor performance, communications, integration, degraded conditions, operator workflows, and the ability to adapt as site requirements change.

Critical infrastructure operators rarely depend on a single security measure. Most sites already use multiple layers of monitoring, detection, access control, and response. The challenge is making sure those layers work together as an event develops, rather than leaving security teams to piece together separate alerts and data sources.

The value of combining information is also reflected in recent research. An  integrated detection approach reduces false alarms by almost half compared with a conventional rule-based system. Although the study focused on cyber-physical security, it highlights a wider challenge for critical infrastructure protection: detecting activity is only useful when security teams can quickly determine what actually requires attention.

The same principle applies to physical protection. Different sensors and security systems have different strengths and limitations. Effective critical infrastructure protection depends on bringing those capabilities together so teams can detect potential threats, verify what is happening, maintain awareness as events develop, and respond with greater confidence.

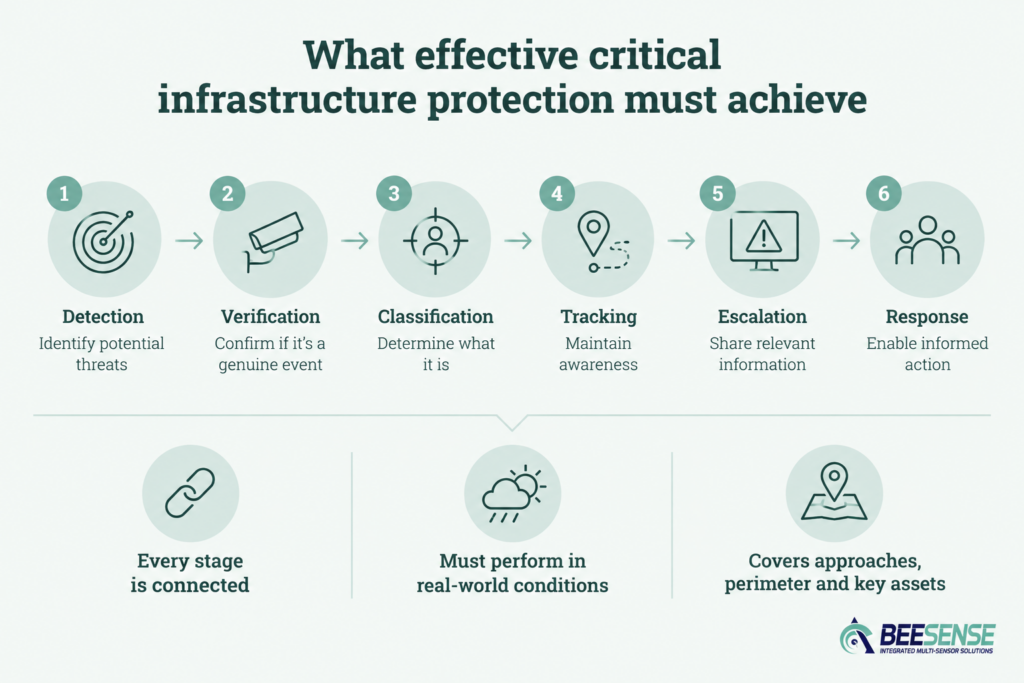

What effective critical infrastructure protection must achieve

Physical protection has a practical purpose: identify potentially threatening activity early enough for security teams to assess it and act.

An effective architecture needs to support six connected functions:

1. Detection: Identify activity that may require attention
2. Verification: Establish whether the detection represents a genuine security event
3. Classification: Determine what type of target or activity is involved
4. Tracking: Maintain awareness of the target as it moves
5. Escalation: Deliver relevant information to the appropriate operator or command level
6. Response: Give security personnel enough context to take appropriate action

A weakness at any stage can reduce the value of the technologies deployed elsewhere. Early detection has limited operational value if an operator cannot verify the target or loses track of it before a response decision is made.

The architecture must also continue to perform outside ideal conditions. Darkness, adverse weather, vegetation, structures, background clutter, communications problems, and changes to the site can all affect surveillance performance.

Protection therefore extends beyond the perimeter itself. Effective perimeter protection requires appropriate surveillance across approaches, boundaries, restricted areas, and high-consequence assets.

Start with the threat, terrain, and consequence

Critical infrastructure protection should begin with the site and its risks, rather than with a preferred technology.

First, identify the assets and functions whose disruption would have the greatest operational consequences. This is particularly important in complex environments such as maritime ports, where surveillance requirements can extend across land and waterside approaches. Then assess credible approach routes, intrusion paths, vulnerable areas, and locations where terrain or infrastructure could limit surveillance.

Different areas of the site require different levels of detection and verification:

Protection area	Primary requirement
Outer approaches	Provide early warning and identify activity before it reaches the perimeter
Perimeter and boundary	Detect potential intrusion and maintain awareness along the site boundary
Verification areas	Provide enough information to assess and classify detected activity
Restricted areas	Maintain closer surveillance around controlled locations
High-consequence assets	Provide appropriate monitoring around assets where disruption would have significant operational impact
Response areas	Maintain situational awareness as security personnel assess or respond to an event

Site conditions matter just as much as the theoretical capability of the equipment. Buildings, terrain, vegetation, water, lighting, legitimate traffic, weather, communications availability, power, electromagnetic conditions, and maintenance requirements can all influence system design.

This is why nominal detection range is a poor procurement metric when considered in isolation. Actual performance depends on factors including sensor placement, terrain masking, clutter, target characteristics, environmental conditions, and whether another sensor can verify the initial detection.

The objective is not identical surveillance everywhere. It is the right level of coverage and confidence around realistic threats and high-consequence assets.

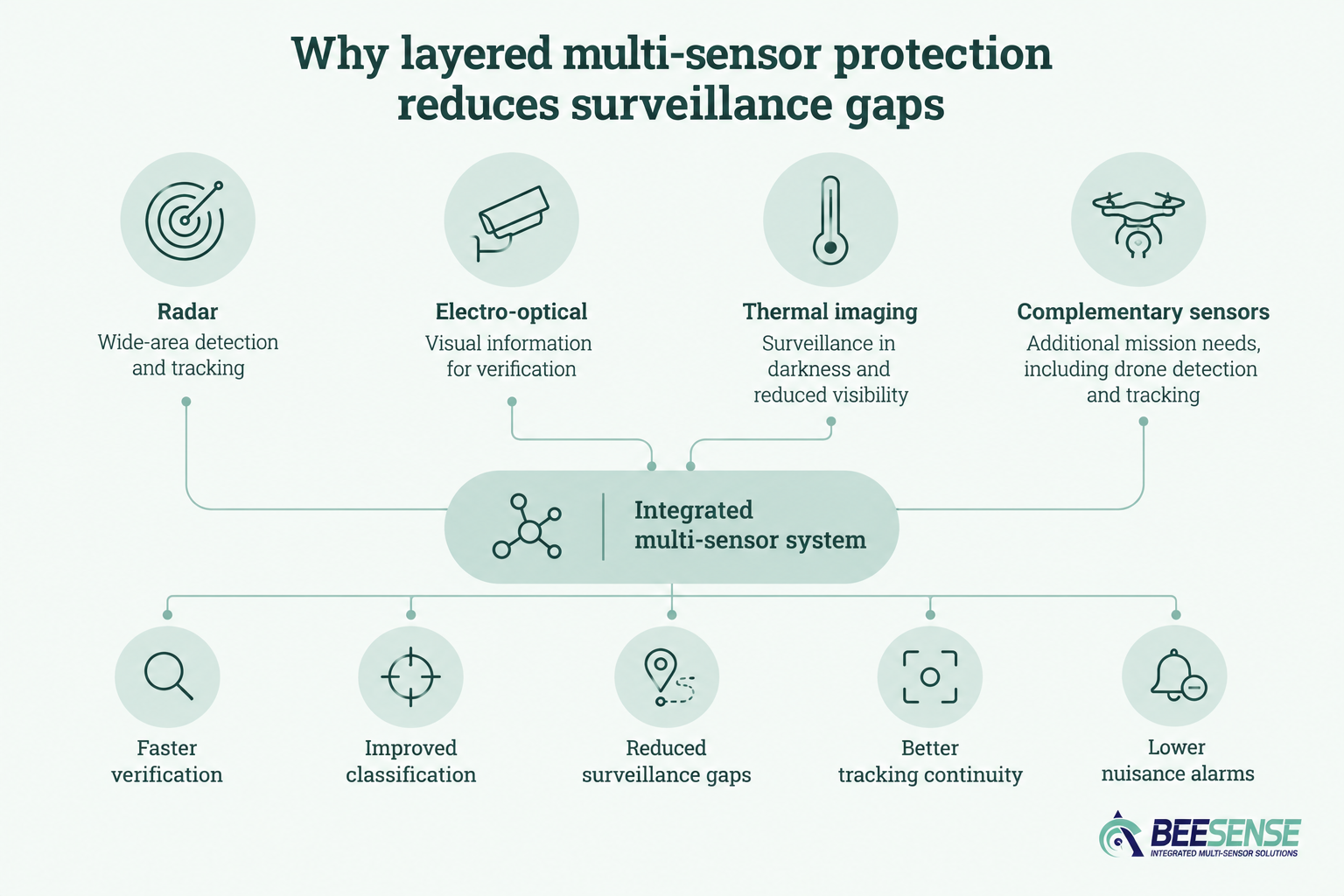

Why layered multi-sensor protection reduces surveillance gaps

No single sensing technology provides the same information or confidence under every condition. Layered protection uses different technologies for different surveillance tasks.

For example:

• Radar can support wide-area detection and tracking
• Electro-optical sensors provide visual information for assessment and verification
• Thermal imaging supports surveillance in darkness and can provide useful information in some reduced-visibility conditions
• Complementary sensors, including those used for drone detection and tracking, can address additional mission or site-specific requirements

The important distinction is between having multiple sensors and operating an integrated multi-sensor architecture.

Standalone sensors can leave operators comparing alarms, coordinates, video feeds, and tracks manually. Each device may work as intended, but the control room becomes the point where information has to be assembled.

Sensor fusion addresses this problem by correlating information from different sensing sources. Detections can be associated with a common event or track, giving operators more context without requiring them to interpret every sensor output independently.

When correctly configured for the site and mission, this approach can support faster verification, improved classification, reduced surveillance gaps, better tracking continuity, and a lower nuisance-alarm burden.

BeeSense applies this principle through modular, integrated multi-sensor surveillance systems. Depending on the mission and configuration, radar, electro-optical, thermal, and complementary sensing technologies can be combined to support persistent monitoring and a unified operational picture.

The real test is continuity from detection to response

A surveillance architecture is tested most clearly when a target moves.

Consider an event that begins in an outer approach area. One sensor provides the initial detection. Another is used to verify the target. The target then moves towards the perimeter and later enters another surveillance zone.

At each stage, the system needs to preserve useful context.

The operator should be able to understand that the detections relate to the same developing event. Location, track information, supporting imagery, and other relevant information should remain available as the target moves. This depends on how effectively different data sources are brought together and made available to the operator.

Without that continuity, operators may have to reconstruct the event manually. This takes time and increases workload precisely when rapid assessment is required.

Alarm quality matters as much as alarm volume

More detections do not automatically produce better security.

A highly sensitive system that continuously generates nuisance alarms can place a significant burden on operators. Over time, excessive alarm volumes can make it harder to identify events that genuinely require attention.

A well-designed architecture can improve alarm quality through:

• Corroboration between different sensing technologies
• Appropriate detection zones and thresholds
• Event correlation
• Rapid visual or thermal verification
• Post-deployment tuning based on actual site conditions

The surveillance layer should also connect with the wider operational environment. Depending on the deployment, this may include video management systems, physical security information management platforms, or command-and-control systems.

This does not require the surveillance system to replace the organisation’s existing security infrastructure. A modular multi-sensor layer can feed relevant information into the broader command environment while barriers, access control, communications, security personnel, and other systems continue to perform their respective roles.

How to evaluate a critical infrastructure protection architecture

Technical specifications are important, but they do not show how the complete system will perform at the operational site.

Before selecting or upgrading an architecture, security teams should examine the following questions:

1. Does the design reflect actual threat routes and high-consequence assets? Sensor placement should follow operational risk rather than simply tracing the physical boundary.
2. Where does each sensor lose confidence? Identify the effects of terrain, structures, weather, lighting, clutter, range, and target characteristics when evaluating sensor performance, and determine what provides coverage in those areas.
3. Can operators verify detections quickly? Verification should add context without forcing operators to move repeatedly between disconnected systems.
4. Can the architecture maintain track continuity? A target should not effectively become a new event every time it moves between surveillance zones or sensor coverage areas.
5. How are nuisance and false alarms managed? Consider correlation, verification, threshold configuration, and post-deployment tuning.
6. What happens when part of the system is degraded? Communications loss, power disruption, sensor outages, adverse weather, and maintenance requirements should be considered during system design.
7. Can it integrate with the existing command environment? Integration requirements for video management, physical security information management, command-and-control, and other relevant systems should be established early.
8. Can the architecture change with the site? New buildings, expanded protected areas, changing threat routes, and additional operational requirements should not automatically require a complete redesign.

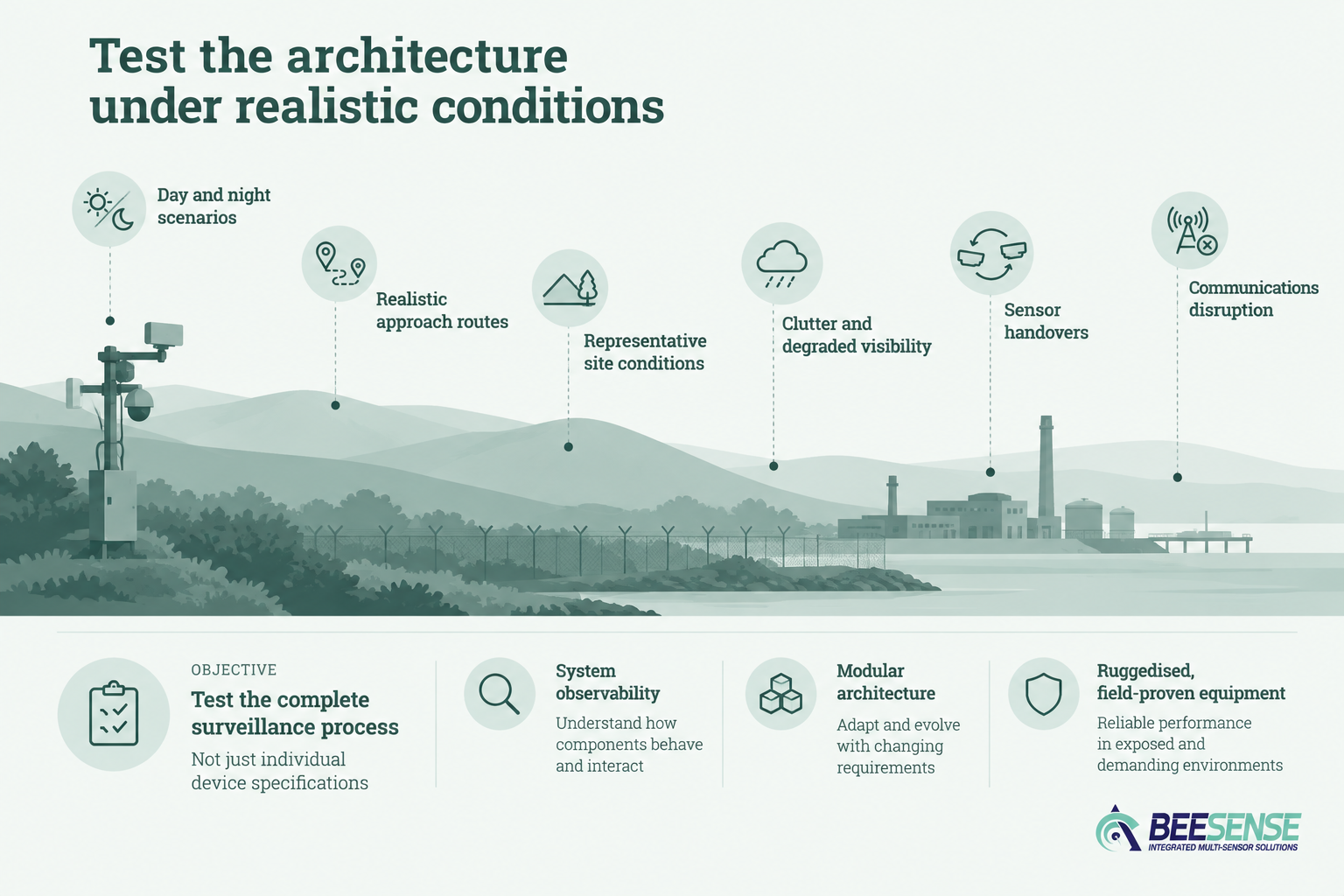

Test the architecture under realistic conditions

Acceptance testing should reflect the environment in which the system will actually operate.

That means testing relevant scenarios during the day and at night, along realistic approach routes, and under representative site conditions. Where applicable, testing should also cover clutter, degraded visibility, sensor handovers, communications disruption, and other conditions that could affect operational performance.

The objective is to test the complete surveillance process, not simply confirm that individual devices meet their specifications. This also means understanding how different components perform and interact under real operating conditions.

This is where modularity, integration, and field-proven equipment become particularly important. A modular architecture can accommodate different sensing technologies and evolve as requirements change. Ruggedised equipment is equally important for exposed, remote, or demanding locations where surveillance must remain available over extended periods.

Build protection around operational continuity

The strength of a critical infrastructure protection architecture is not determined by the number of devices installed or the longest range quoted on a specification sheet.

What matters is whether security teams can maintain useful situational awareness as an event develops.

They need enough warning to identify a potential threat, enough information to verify and classify it, sufficient tracking continuity to understand where it is going, and enough context to decide how to respond.

For this reason, the interfaces between sensors, surveillance zones, communications, software, operators, and response procedures deserve the same attention as individual product specifications.

BeeSense supports this approach with modular, integrated multi-sensor surveillance systems designed for persistent monitoring, reduced surveillance gaps, real-time situational awareness, and reliable operation in demanding environments. Systems can be configured around the requirements of power facilities, oil and gas sites, ports, industrial locations, remote facilities, and other sensitive assets.
