The Ground Surveillance Radar Buyer’s Guide for 2026

Abstract

• Ground surveillance radar provides wide-area detection and tracking of people, vehicles, and other targets across protected areas, but procurement decisions must assess the complete surveillance configuration rather than headline range alone.
• Requirements should connect target profiles, site geometry, warning time, tracking performance, and acceptable false-alarm rates to the operational mission.
• Supplier claims need configuration-specific evidence, site modelling, and acceptance testing under representative terrain, clutter, weather, and failure conditions.
• A defensible choice also accounts for verification workflows, sensor and command-system integration, lifecycle support, and whether a standalone radar or multi-sensor architecture best delivers the required outcome.

Procurement teams reviewing a ground surveillance radar proposal are not trying to learn what radar does. They are deciding whether a specific configuration can meet an operational requirement and whether the supplier has enough evidence to prove it.

That requires looking beyond headline range. Recent radar modelling shows how terrain can significantly reduce usable coverage. In one example, a radar with a 1,500 m maximum detection radius covered about 78.5% of the defined surveillance area under simplified conditions. Once terrain effects were included, coverage varied significantly because of shielding and blind areas.

Maximum detection range does not equal usable site coverage. The proposed configuration should be assessed against the actual terrain, installation position, target requirements, clutter, and verification workflow.

Ground surveillance radar procurement starts with the mission

Buying a ground surveillance radar is not simply a matter of comparing range, resolution, or detection claims. The real question is whether the proposed configuration can support the required operational outcome at the specific site. That means understanding what must be detected, how quickly a stable track must be established, how the target will be verified, and how the information will reach operators and command systems.

Terrain, clutter, installation height, target behaviour, weather, and line of sight can all affect usable performance. The same radar can therefore deliver very different results depending on where and how it is deployed. Buyers also need to consider false-alarm rates, integration requirements, sustainment, and acceptance testing.

The following six areas provide a practical framework for evaluating whether a proposed ground surveillance radar can deliver reliable detection, tracking, verification, and operational support under real deployment conditions.

1. Define the mission and radar requirement

A ground surveillance radar should be specified against the mission it must support, not a generic short, medium, or long-range category. First, there is the operational timeline: What needs to be detected and where, and how much time is needed for verification, assessment, and response?

That means defining target classes, expected speeds, likely approach routes, and behaviour. A pedestrian crossing open ground is a different requirement than a vehicle coming at speed or a target moving sporadically through clutter. So the required detection point should be tied to warning time, not headline range.

The requirement also must discriminate between initial detection and a stable, maintained track. A supplier may quote the distance at which a target is first detected, but procurement teams need to know how quickly a reliable track is established, how consistently it is maintained, and whether it remains accurate enough to support radar-to-camera cueing and response.

Site geometry is equally important. Terrain masking, vegetation, buildings, roads, water, and installation height can reduce usable coverage well inside a radar’s published range.

Practical constraints belong in the requirements from the outset. Simultaneous-target capacity, handover, mounting, power, communications, bandwidth, and required availability determine whether the proposed radar can perform as part of the wider surveillance architecture, not simply whether it can detect a target under ideal conditions.

Tip: Define the required warning time before defining range. Work backwards from how long operators need to verify, assess, and respond to a target, then determine where reliable detection and tracking must begin.



Requirement	Define
Targets	Target class, speed, behaviour, and likely approach routes
Detection	Required detection point and warning time
Tracking	Track-initiation time and maintained-track performance
Multiple targets	Simultaneous-target capacity and separation requirements
Handover	Track handover between radar, cameras, or other sensors
Coverage	Protected area, terrain, line of sight, and coverage gaps
Deployment	Mounting, installation, and environmental constraints
Infrastructure	Power, communications, bandwidth, and availability requirements

2. Compare meaningful performance claims

Ground surveillance radar performance claims are only useful when buyers can compare them on the same basis. A stated detection range should therefore be assessed against the conditions used to produce it.

For each quoted performance figure, confirm:

• Target type and radar cross-section: What target profile was used to establish the stated range?
• Speed and aspect: How was the target moving, and at what orientation to the radar?
• Operating conditions: What terrain, clutter, weather, and environmental conditions applied during testing?
• Probability of detection: What detection probability does the quoted range represent?
• False-alarm conditions: What detection threshold and corresponding false-alarm rate were used?

Without this context, two apparently similar range figures may represent very different levels of operational performance.

A target may also be detected at long range but only form a stable track later, reducing the time available for verification and response. Buyers should therefore review update rate, positional accuracy, minimum detectable velocity, track capacity, and the ability to separate closely spaced targets alongside range.

False-alarm performance needs equal scrutiny. Probability of detection is only meaningful when the corresponding false-alarm conditions and detection thresholds are known. Suppliers should explain the operating point used during testing and whether results came from measured field trials or modelling.

The evidence must also match what is actually being purchased. Confirm that each quoted figure applies to the exact hardware configuration and software version being offered. Any claim used to support selection should be reproducible under agreed acceptance-test conditions.

Tip: Do not compare range figures in isolation. Ask suppliers to state the target profile, operating conditions, probability of detection, false-alarm conditions, and whether the figure refers to first detection or maintained tracking.



Performance area	What to confirm
Range	Target-specific detection and tracking range
Target conditions	Size, aspect, speed, and radar cross-section
Detection	Probability of detection and false-alarm conditions
Tracking	Track initiation, maintained tracking, update rate, and accuracy
Capacity	Simultaneous tracks and target separation
Evidence	Measured or modelled results
Configuration	Exact hardware and software version
Acceptance	Whether the claim can be reproduced during testing

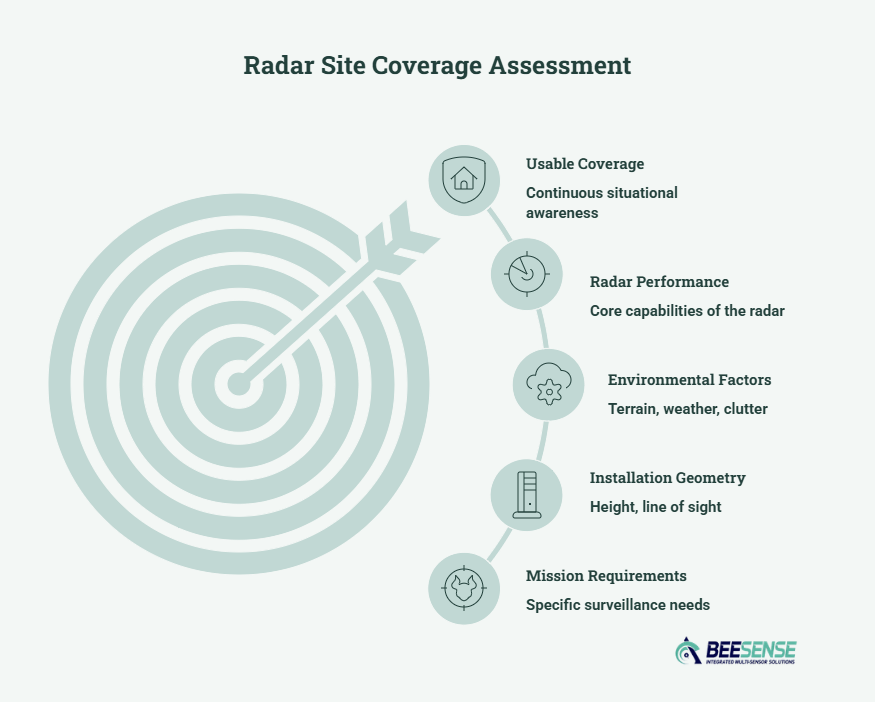

3. Assess site and environmental fit

Published ground surveillance radar performance does not automatically translate into usable site coverage. Buyers should assess the proposed configuration against the actual terrain, installation geometry, and sources of clutter that will affect detection and track continuity.

Terrain masking, buildings, vegetation, roads, water, moving infrastructure, wildlife, and authorised traffic can all create blind areas or nuisance returns. Weather and seasonal change can further affect those conditions, particularly where vegetation growth, surface moisture, rain, fog or sea clutter impact the radar environment.

Installation height and line of sight should therefore be treated as system-design variables, not deployment details. Buyers require site-specific coverage modelling showing expected gaps, masking, overlap and areas where a second radar or complementary electro-optical or thermal sensor may be needed. A generic circular range plot does not give enough evidence of usable coverage.

Site evaluation should also include measurements of performance under adverse conditions; track drops, time to reacquire, duplicate tracks, nuisance alarms, and operator time spent resolving ambiguous events. These factors determine whether the radar contributes to continuous situational awareness or simply adds operator workload.

Where terrain, infrastructure, or line-of-sight constraints prevent one sensor from maintaining the required coverage, the solution may need overlapping radar coverage or complementary sensing. BeeSense approaches radar as one layer within an integrated, modular multi-sensor surveillance architecture.  Where the same surveillance architecture also supports low-altitude drone detection, apply the same discipline: assess radar performance against target profile, clutter, terrain, installation geometry, and the required verification workflow.

Tip: Request site-specific coverage modelling rather than relying on a generic range plot. The model should show terrain masking, line-of-sight limitations, likely blind areas, overlap, and where additional radar or complementary sensors may be required.

4. Evaluate verification and integration

Ground surveillance radar detection only becomes operationally useful when the system turns a track into verified, actionable information. The buyers should therefore assess the whole chain from detection to camera cueing, verification, handover and command-environment presentation and not just whether interfaces exist.

Check the accuracy and latency of the handover for radar-to-camera cueing. A radar track may be technically valid but still cause operator delay if georeferencing is poor, clocks are unsynchronised, calibration is inconsistent, or the camera must search a large area before finding the target. The system shall demonstrate that a suitable electro-optical or thermal sensor can capture the track quickly enough to allow verification.

Continuity of track is important too. As a target transitions between radar coverage, visual sensors and the broader command-and-control environment, buyers should test to see if the same target remains correlated. The operator should be able to interpret detection status, verification state, location, track history and confidence rather than as independent events.

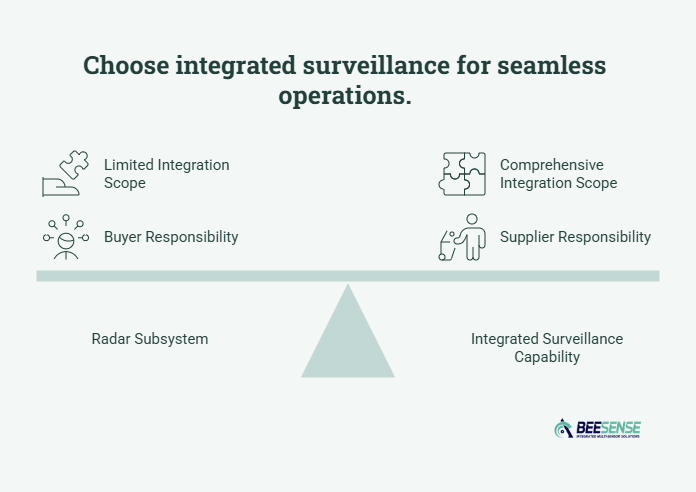

This distinction becomes important when comparing a radar subsystem with an integrated surveillance capability. A radar supplier may provide track data and interfaces while leaving camera cueing, calibration, event correlation, networking, and command-system handoff to the buyer or systems integrator.

BeeSense designs integrated multi-sensor surveillance configurations around the required operational workflow. Depending on the mission and selected configuration, this can connect radar detection with electro-optical or thermal verification, tracking, sensor correlation, communications, and handoff into the wider command environment. For tactical operations, force protection, or remote deployments, the MANTIS surveillance system provides a portable electro-optical and thermal layer for rapid-deployment, covert, or unattended surveillance missions.

“API is available” does not mean operational integration. Buyers should check what interfaces are supported, what data is passed between systems, cybersecurity controls, user permissions, audit logging, and behaviour in the event of sensor or communications failure. Integration also has to preserve data context: the operator needs to know what generated an event, when it occurred, how it relates to the existing track, and what verification state applies.

Responsibility must also be clearly stated. Indicate ownership of calibration, commissioning, integration, acceptance testing, cyber security and fault resolution: radar supplier, systems integrator or customer.

Tip: Test the complete detection-to-verification workflow, not just the interface. Confirm how quickly and accurately a radar track cues the electro-optical or thermal sensor, how the target remains correlated, and what information reaches the operator or command system.

5. Check deployment and lifecycle requirements

A ground surveillance radar that meets detection and tracking requirements can still be a poor procurement choice if it is difficult to install, sustain, or support over its service life. Buyers should thus treat deployment and lifecycle requirements as part of the technical evaluation, rather than as post-selection logistics.

Begin with the physical installation. Determine the size, weight, mounting method, tower or foundation requirements, access for maintenance, and any problems due to wind loading, vibration, terrain or restricted sites. The offered configuration should be assessed as installed, not as a standalone sensor on a datasheet.

Power and communications are equally important. Buyers should define primary and backup power, bandwidth, local processing and storage, and expected behaviour during network disruption. Where remote or unattended operation is required, resilience and maintenance access become part of operational availability.

Environmental and electromagnetic qualifications should also match the deployment conditions and the exact configuration being supplied. Buyers should thus treat deployment and lifecycle requirements as part of the technical evaluation, rather than as post-selection logistics.

Lifecycle support includes calibration, preventative maintenance, training, spares, repair turnaround, software support, cybersecurity updates, licensing, configuration control, and obsolescence management. Third-party risk should also be considered where the proposed capability depends on external software, communications services, specialist integrators, or long-term supplier support.  Additional sensors, coverage, or command-system integrations should also be considered for future expansion.

The total lifecycle cost includes not just the initial radar purchase price, but also infrastructure, sustainment, software, upgrades and expansion.

Tip: Evaluate the radar as an installed and supported capability, not as a standalone sensor. Include mounting, power, communications, maintenance access, software support, spares, upgrades, and future expansion when assessing lifecycle cost and operational availability.

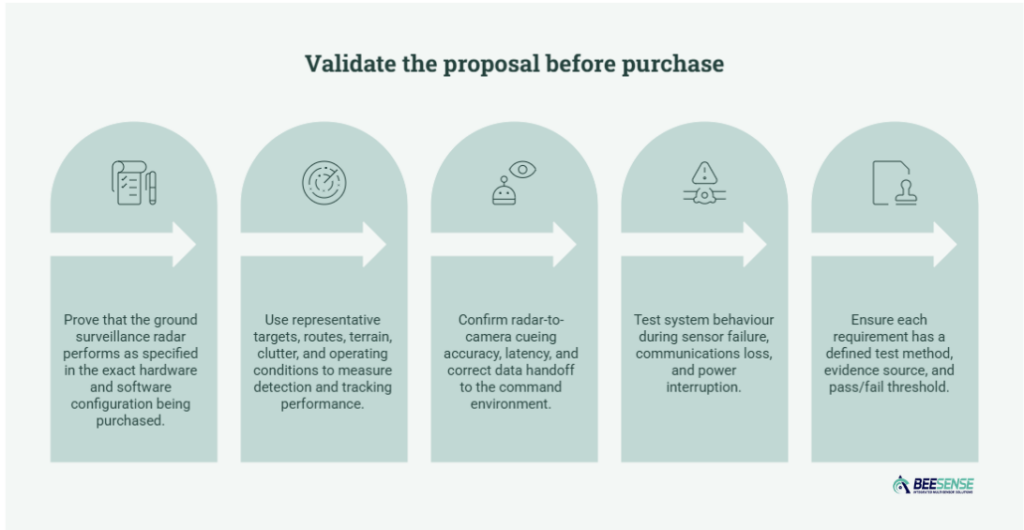

6. Validate the proposal before purchase

Operational acceptance testing should prove that the proposed ground surveillance radar performs as specified in the exact hardware and software configuration being purchased. Factory specifications, simulations, and previous demonstrations can support evaluation, but they should not replace representative testing against the buyer’s mission and site conditions.

The test plan should use representative targets, routes, terrain, clutter, and operating conditions. Buyers should measure probability of detection, track-initiation time, maintained-track performance, track drops, reacquisition, and false- and nuisance-alarm rates.

Where radar-to-camera cueing forms part of the surveillance workflow, acceptance testing should also confirm day and night verification performance. The radar should be tested for consistent detection and tracking across the agreed operating conditions, while the electro-optical or thermal verification layer should demonstrate that it can acquire and verify the cued target under representative daylight, darkness, and degraded-visibility conditions. Testing should measure cueing accuracy, latency, and the time required to achieve usable visual or thermal verification.

Integration and resilience should be tested as well. Confirm that tracks and verification status are handed into the wider command environment correctly, and test behaviour during sensor failure, communications loss, and power interruption. These scenarios should form part of acceptance rather than being left for post-deployment troubleshooting.

Each requirement should have a defined test method, evidence source, and pass/fail threshold. If a supplier claim cannot be reproduced under the agreed conditions, the buyer should be able to qualify, retest, or reject it before final acceptance.

Tip: Turn every important supplier claim into an acceptance-test requirement. Define the test method, operating conditions, evidence required, and pass/fail threshold before purchase so performance can be demonstrated against the actual mission and configuration.

Ground Surveillance Radar Buyer Acceptance Test Checklist

• Test the exact offered hardware and software version
• Use representative targets and approach routes
• Include actual terrain and clutter conditions
• Measure the probability of detection and the false-alarm rate
• Measure track initiation, track drops, and reacquisition
• Test simultaneous targets where required
• Test radar-to-camera cueing and verification time
• Confirm track and event handoff into the command environment
• Test sensor, power, and communications failure
• Record results against agreed pass/fail criteria

Choose the surveillance outcome, not the longest range

The best ground surveillance radar is not necessarily the one with the largest figure on the datasheet. It is the configuration that can demonstrate target-specific detection, stable tracking, manageable false-alarm rates, timely verification, defined integration, and supportable operation under the conditions that actually matter.

BeeSense approaches radar as one layer within an integrated, modular multi-sensor surveillance architecture. Depending on the mission and configuration, our systems can connect radar, electro-optical, thermal, analytical, communications, and command-and-control functions to support persistent situational awareness and a unified operational picture.

Determine whether your programme needs a standalone ground surveillance radar or an integrated multi-sensor surveillance capability. Discuss your operational targets, terrain, warning-time requirements and deployment constraints with a BeeSense expert today.
